Installation [09/2014 - 03/2019]: Procedure

1. Engage the guide to temporarily install the headlight leveling ECU assembly.
2. Install the headlight leveling ECU assembly with the bolt and nut.

   Bolt

   Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

   Nut

   Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

3. Engage the clamp.
4. Connect the connector.
5. Engage the 3 clips to connect the connector holder.
6. Connect the earth wire with the bolt.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

7. Engage the 2 clamps to install the No. 3 dash panel insulator pad.

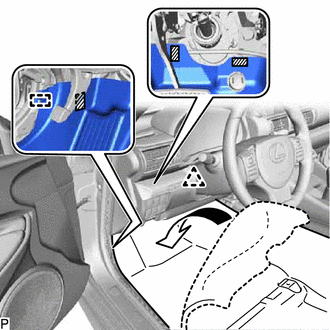

8. Install the front floor carpet assembly to its original position as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fastener

9. Engage each fastener and the clamp.
10. Install the clip.
11. Engage the 2 claws to install the front floor carpet assembly to the 2 floor carpet hooks.

Refer to PROCEDURE - Step 13 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 13 [11/2017 - 03/2019]

Refer to PROCEDURE - Step 14 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 14 [11/2017 - 03/2019]

Refer to PROCEDURE - Step 37 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 36 [11/2017 - ]

Refer to PROCEDURE - Step 38 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 37 [11/2017 - ]

Refer to PROCEDURE - Step 7

Refer to PROCEDURE - Step 11

Refer to INITIALIZATION [09/2014 - 11/2017] , or refer to INITIALIZATION [11/2017 - 03/2019]

Refer to ADJUSTMENT [09/2014 - 03/2019]
