Components [09/2014 - ]

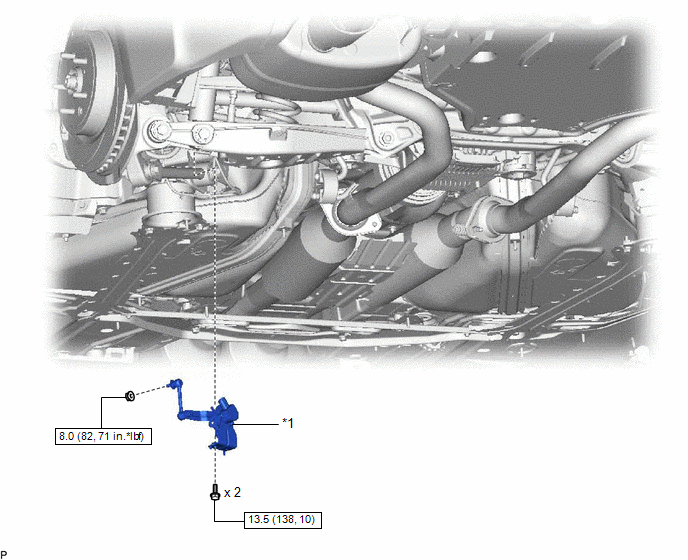

Fig 1: Height Control Sensor Replacement Components With Torque Specifications
GTY959173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
