Disassembly [03/2019 - ]: Procedure

  1. REMOVE REAR TURN SIGNAL LIGHT BULB

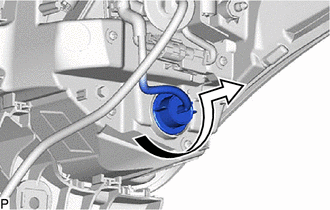

    1. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY825987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.
      GTY518284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COMBINATION LIGHT PROTECTOR
    1. Remove the screw.
      GTY838441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to separate the rear combination light protector.
    3. Disengage the claw to remove the rear combination light protector.
      GTY825930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Disengage the clamp.
      GTY825929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the rear combination light socket and wire sub-assembly.
  4. REMOVE REAR BUMPER UPPER RETAINER
    1. Disengage the 2 guides to remove the rear bumper upper retainer.
      GTY816480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR COMBINATION LIGHT LENS AND BODY
