Disassembly [09/2014 - 03/2019]: Procedure

  1. REMOVE REAR TURN SIGNAL LIGHT BULB

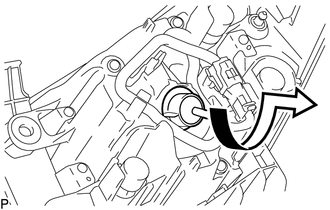

    1. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to disconnect them as a unit.
      GTY501068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the rear turn signal light bulb from the rear combination light socket and wire sub-assembly.
      GTY518284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Disengage the 2 clamps.
      GTY501066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the rear combination light socket and wire sub-assembly.
  3. REMOVE REAR BUMPER UPPER RETAINER
    1. Disengage the 2 guides to remove the rear bumper upper retainer.
      GTY501065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
