Installation [03/2019 - ]: Procedure

  1. INSTALL REAR COMBINATION LIGHT ASSEMBLY
    1. Engage the grommet.

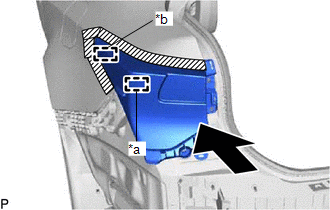

    2. Engage the guide and pin to temporarily install the rear combination light assembly as shown in the illustration.
      GTY792069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Guide
    3. Install the rear combination light assembly with the 3 screws.
    4. for LH Side:
      1. Engage the clamp.
    5. Remove the protective tape.
    6. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER

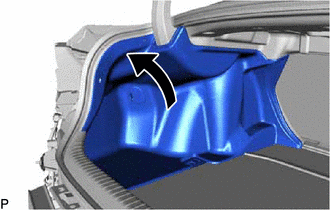

    1. Install the luggage compartment trim cover to its original position as shown in the illustration.
      GTY824907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 clips.
  3. INSTALL REAR COMBINATION LIGHT COVER

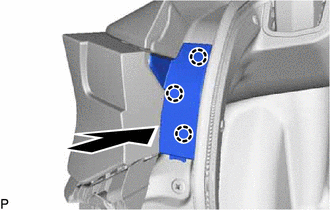

    1. Engage the 3 claws as shown in the illustration.
      GTY824909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

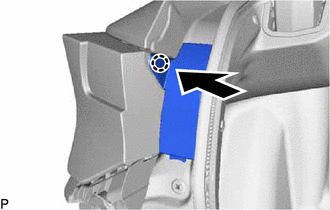

    2. Engage the claw to install the rear combination light cover as shown in the illustration.
      GTY824908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL REAR BUMPER ASSEMBLY

    Refer to INSTALLATION [03/2019 - ]
