Installation [09/2014 - 03/2019]: Procedure

1. Engage the grommet.

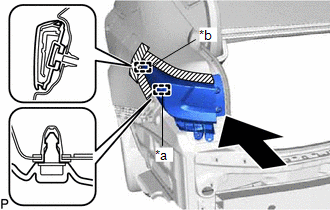

2. Engage the guide and pin to temporarily install the rear combination light assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Pin
   *b	Guide

3. Install the rear combination light assembly with the 3 screws.

   Torque: 2.3 N.m (23 kgf/cm, 20 in.lbf)

4. for LH Side:
   1. Engage the clamp.
5. Remove the protective tape.
6. Connect the connector.

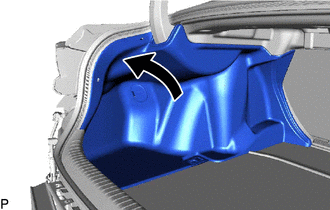

1. Install the luggage compartment trim cover to its original position as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the clip.

See step  6

Refer to INSTALLATION [09/2014 - 03/2019]
