Reassembly [03/2019 - ]: Procedure

  1. INSTALL REAR COMBINATION LIGHT LENS AND BODY
  2. INSTALL REAR BUMPER UPPER RETAINER
    1. Engage the 2 guides to install the rear bumper upper retainer.

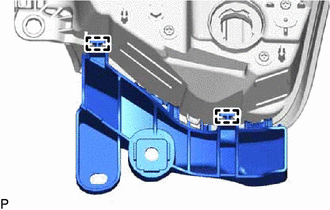

      GTY816480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Connect the connector.

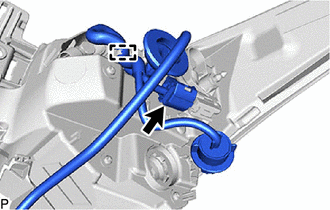

      GTY825929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp to install the rear combination light socket and wire sub-assembly.
  4. INSTALL REAR COMBINATION LIGHT PROTECTOR
    1. Engage the claw.

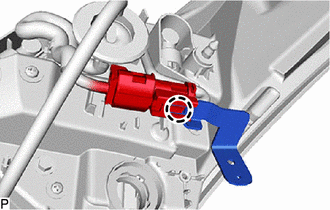

      GTY825930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the guide.

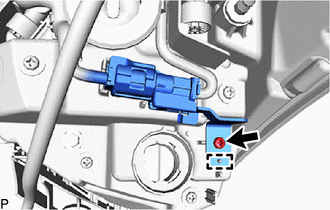

      GTY838441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the rear combination light protector with the screw.
  5. INSTALL REAR TURN SIGNAL LIGHT BULB
    1. Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly.
      GTY518284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to connect them as a unit.

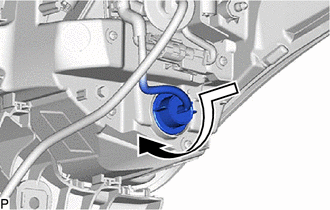

      GTY825986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
