Reassembly [09/2014 - 03/2019]: Procedure

  1. INSTALL REAR BUMPER UPPER RETAINER

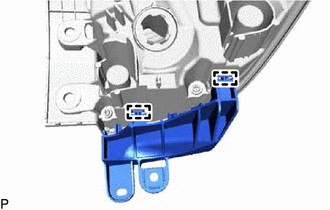

    1. Engage the 2 guides to install the rear bumper upper retainer.
      GTY501065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY

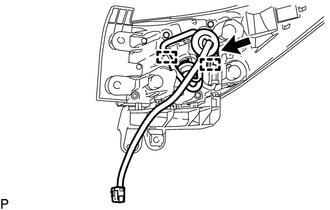

    1. Connect the connector.
      GTY501066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 clamps to install the rear combination light socket and wire sub-assembly.
  3. INSTALL REAR TURN SIGNAL LIGHT BULB

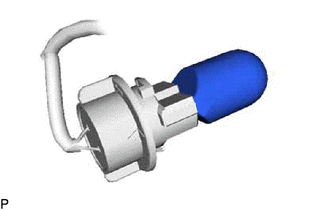

    1. Install the rear turn signal light bulb to the rear combination light socket and wire sub-assembly.
      GTY518284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

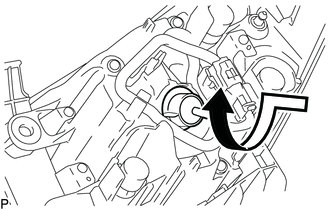

    2. Turn the rear combination light socket and wire sub-assembly with the rear turn signal light bulb as shown in the illustration to connect them as a unit.
      GTY501067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
