Removal [03/2019 - ]: Procedure

REMOVE REAR BUMPER ASSEMBLY
Refer to REMOVAL [03/2019 - ]

REMOVE REAR COMBINATION LIGHT COVER

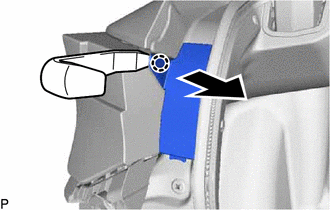

Using a moulding remover, disengage the claw as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

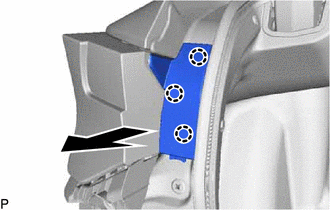

Disengage the 3 claws to remove the rear combination light cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE LUGGAGE COMPARTMENT TRIM COVER

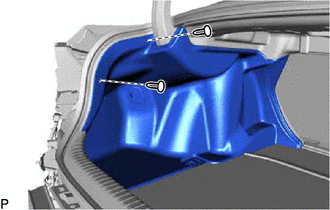

Using a clip remover, remove the 2 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

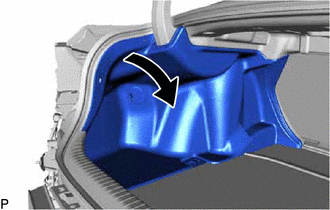

Turn back the luggage compartment trim cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR COMBINATION LIGHT ASSEMBLY

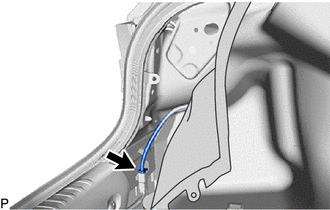

Disconnect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Apply protective tape around the rear combination light assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

for LH Side:

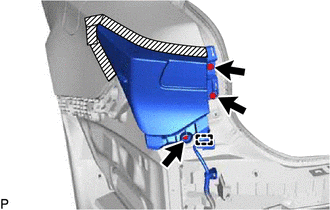

1. Disengage the clamp.
Remove the 3 screws.

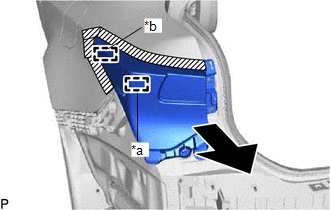

Pull the rear combination light assembly toward the rear of the vehicle to disengage the pin and guide and separate the rear combination light assembly as shown in the illustration.

NOTE:

To prevent the rear combination light assembly from falling when disengaging the pin, lightly hold the rear combination light assembly.

*a	Pin
*b	Guide

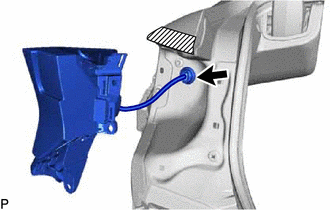

Disengage the grommet to remove the rear combination light assembly.
