Components [03/2019 - ]

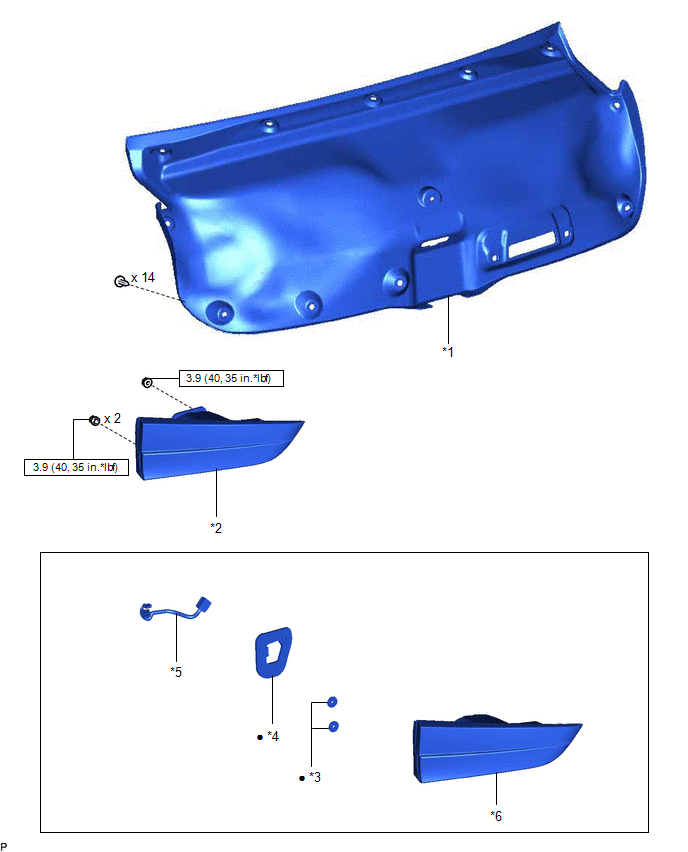

Fig 1: Rear Light Assembly Replacement Components With Torque Specifications [03/2019 - ]
GTY961503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LUGGAGE COMPARTMENT DOOR COVER *2 REAR LIGHT ASSEMBLY
*3 REAR LIGHT GASKET *4 REAR LIGHT GASKET LH
*5 REAR LIGHT SOCKET AND WIRE *6 REAR LIGHT LENS AND BODY
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
