Disassembly [09/2014 - 03/2019]: Procedure

REMOVE BACK-UP LIGHT BULB

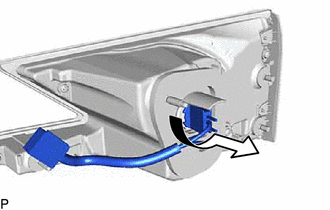

Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the back-up light bulb from the rear light socket and wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR LIGHT SOCKET AND WIRE

for Type A:

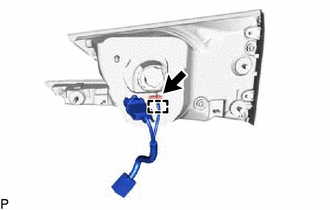

Disconnect the connector to remove the rear light socket and wire.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for Type B:

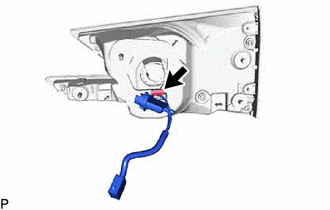

Disengage the rear light socket and wire from the slit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR LIGHT GASKET LH

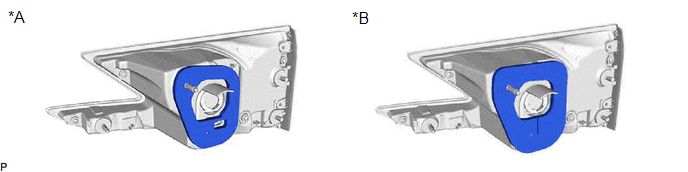

Remove the rear light gasket LH.

for Type A

for Type B

NOTE:

Be sure to remove all traces of the old rear light gasket LH from the vehicle body.
Do not reuse the removed rear light gasket LH. Be sure to install a new rear light gasket LH to prevent water ingress.

REMOVE REAR LIGHT GASKET

Remove the 3 rear light gaskets.

NOTE:

Be sure to remove all the traces of the old rear light gasket from the vehicle body.
Do not reuse the removed rear light gasket. Be sure to install new rear light gasket to prevent water ingress.
