Installation [03/2019 - ]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY

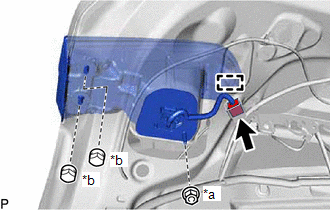

    1. Engage the guide.
      GTY835863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Nut
      *b Cap Nut
    2. Install the nut and 2 cap nuts to install the rear light assembly.

      Torque: 3.9 N.m (40 kgf/cm, 35 in.lbf)

    3. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 32
