Installation [09/2014 - 03/2019]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY
    1. Install the rear light assembly with the 4 nuts.

      Torque: 3.9 N.m (40 kgf/cm, 35 in.lbf)

    2. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

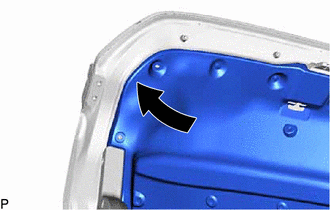

    1. Install the luggage compartment door cover to its original position as shown in the illustration.
      GTY501027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 clips.
