Reassembly [03/2019 - ]: Procedure

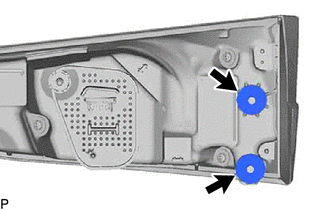

  1. INSTALL REAR LIGHT GASKET
    1. Install 2 new rear light gaskets.
      GTY825979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

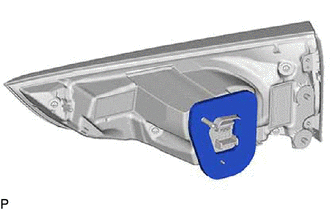

  2. INSTALL REAR LIGHT GASKET LH
    1. Install a new rear light gasket LH.
      GTY825980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

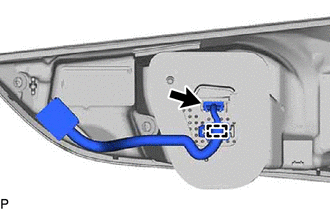

  3. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear light socket and wire.
      GTY838440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the clamp.
