Reassembly [09/2014 - 03/2019]: Procedure

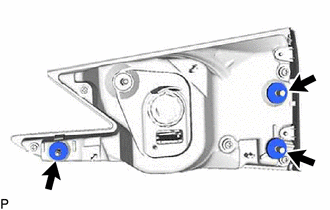

  1. INSTALL REAR LIGHT GASKET
    1. Install 3 new rear light gaskets.
      GTY501063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

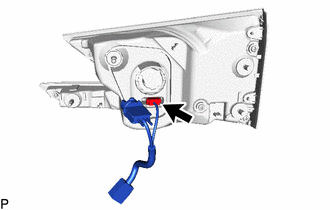

  2. INSTALL REAR LIGHT SOCKET AND WIRE
    1. Connect the connector to install the rear light socket and wire.
      GTY778731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

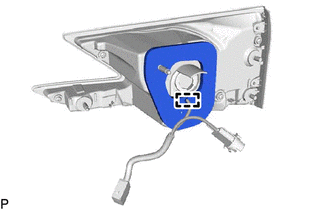

  3. INSTALL REAR LIGHT GASKET LH
    1. Install a new rear light gasket LH.
      GTY828076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the rear light socket and wire to the slit.

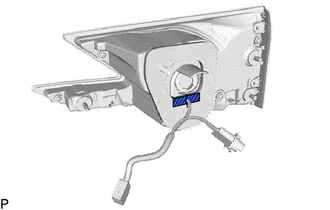

    3. Press the rear light gasket LH at the area shown in the illustration to remove any gaps.
      GTY799823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Press Area
      NOTE:

      To prevent water, foreign matter and insects from entering, make sure to press the rear light gasket LH with a sufficient amount of force.

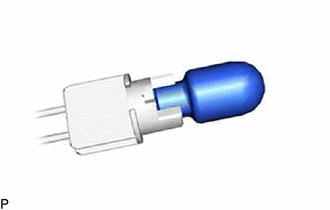

  4. INSTALL BACK-UP LIGHT BULB
    1. Install the back-up light bulb to the rear light socket and wire.
      GTY501059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

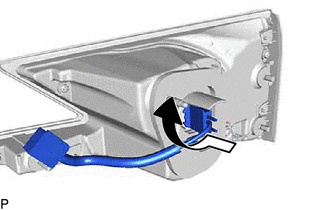

    2. Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to connect them as a unit.
      GTY501058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
