Removal [09/2014 - 03/2019]: Procedure

  1. SEPARATE LUGGAGE COMPARTMENT DOOR COVER

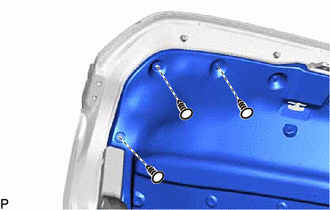

    1. Using a clip remover, remove the 3 clips.
      GTY495609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

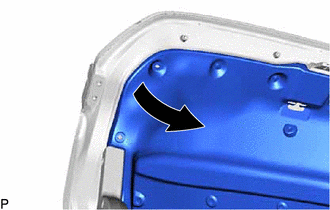

    2. Turn back the luggage compartment door cover as shown in the illustration.
      GTY518277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR LIGHT ASSEMBLY

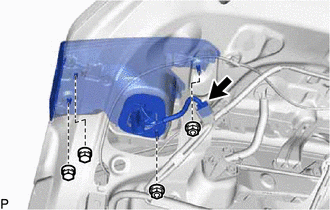

    1. Disconnect the connector.
      GTY508381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 nuts and rear light assembly.
