Components [09/2014 - 03/2019]

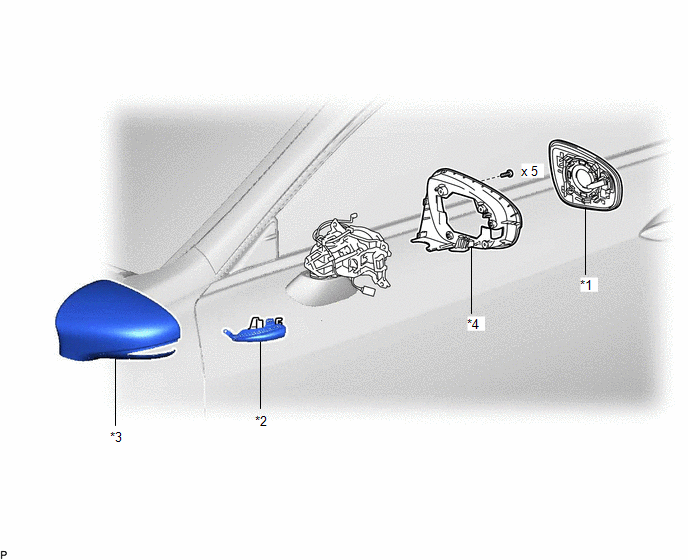

Fig 1: Side Turn Signal Light Assembly Replacement Components [09/2014 - 03/2019]
GTY505104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OUTER MIRROR *2 SIDE TURN SIGNAL LIGHT ASSEMBLY
*3 NO. 2 OUTER MIRROR COVER *4 VISOR ASSEMBLY
