Installation [03/2019 - ]: Procedure

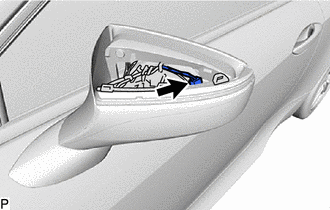

1. Engage the 2 guides.
2. Install the visor cover B to the side turn signal light assembly with the screw.

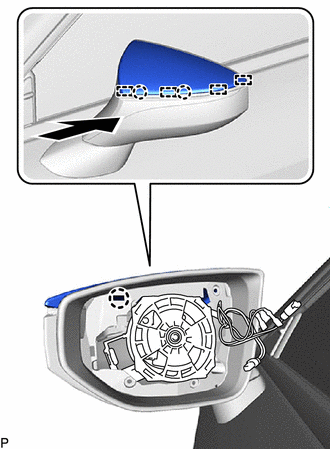

3. Engage the 4 claws to install the visor cover B as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Connect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

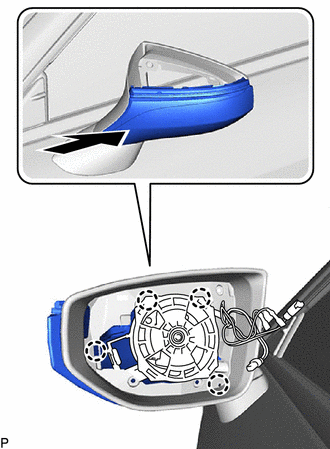

5. Engage the 4 guides and 3 claws to install the visor cover A as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

6. Install the No. 2 outer mirror cover with the 4 screws.

Refer to PROCEDURE - Step 1 [03/2019 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - 01/2023] , or refer to PROCEDURE - Step 1 [01/2023 - ]
