Installation [09/2014 - 03/2019]: Procedure

1. Engage the 2 guides to install the side turn signal light assembly to the No. 2 outer mirror cover.

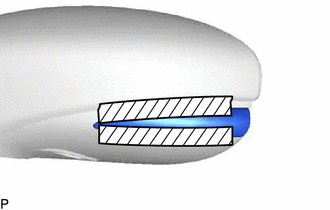

2. Hold the No. 2 outer mirror cover and side turn signal light assembly with the protective tape as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

3. Connect the connector.
4. Engage the guide.
5. Engage the 4 guides and 3 claws to install the visor assembly.
6. Install the No. 2 outer mirror cover with the 5 screws.
7. Remove the protective tape.

Refer to PROCEDURE - Step 1
