Removal [03/2019 - ]: Procedure

REMOVE OUTER MIRROR
Refer to PROCEDURE - Step 1 [03/2019 - 11/2021] , or refer to PROCEDURE - Step 1 [11/2021 - 01/2023] , or refer to PROCEDURE - Step 1 [01/2023 - ]

REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY

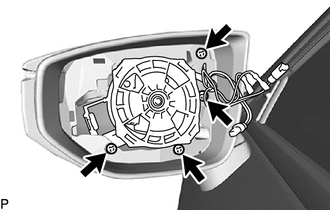

Remove the 4 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

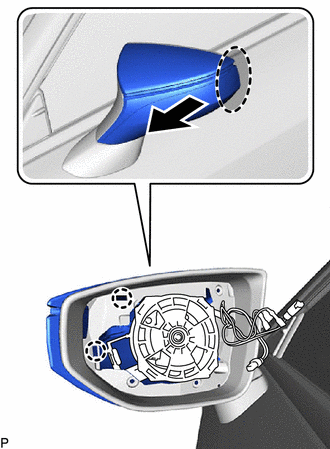

Disengage the 2 claws as shown in the illustration.

NOTE:

As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:

If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hand Here

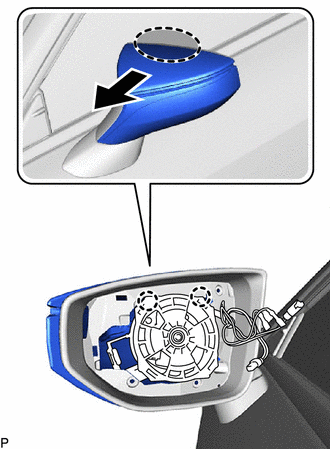

Disengage the 2 claws as shown in the illustration.

NOTE:

As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:

If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hand Here

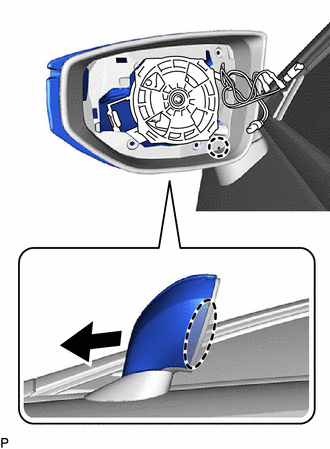

Disengage the claw as shown in the illustration.

NOTE:

As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:

If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

Place Hand Here

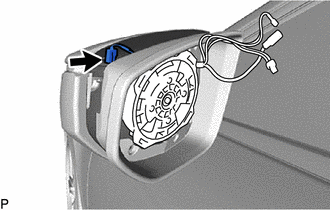

Disconnect the connector.

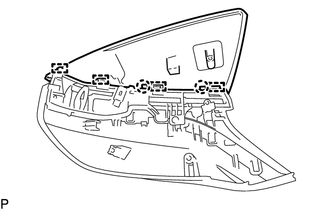

Disengage the 2 claws and 4 guides to remove the visor cover A from the side turn signal light assembly.

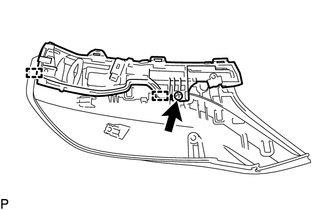

Remove the screw.

Disengage the 2 guides to remove the side turn signal light assembly from the visor cover B.
