Removal [09/2014 - 03/2019]: Procedure

Refer to PROCEDURE - Step 1

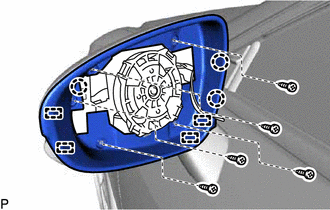

1. Remove the 5 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

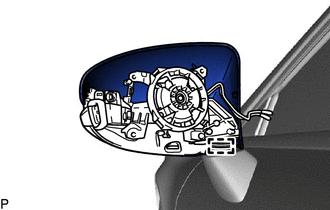

2. Disengage the 3 claws and 4 guides, and remove the visor assembly.
3. Disengage the guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

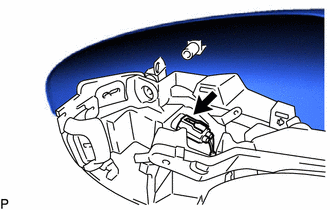

4. Disconnect the connector and remove the No. 2 outer mirror cover with the side turn signal light assembly as a unit.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

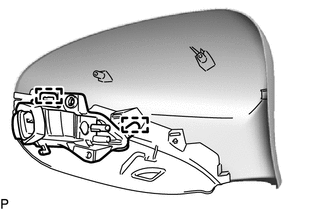

5. Disengage the 2 guides to remove the side turn signal light assembly from the No. 2 outer mirror cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
