Components [09/2014 - ]

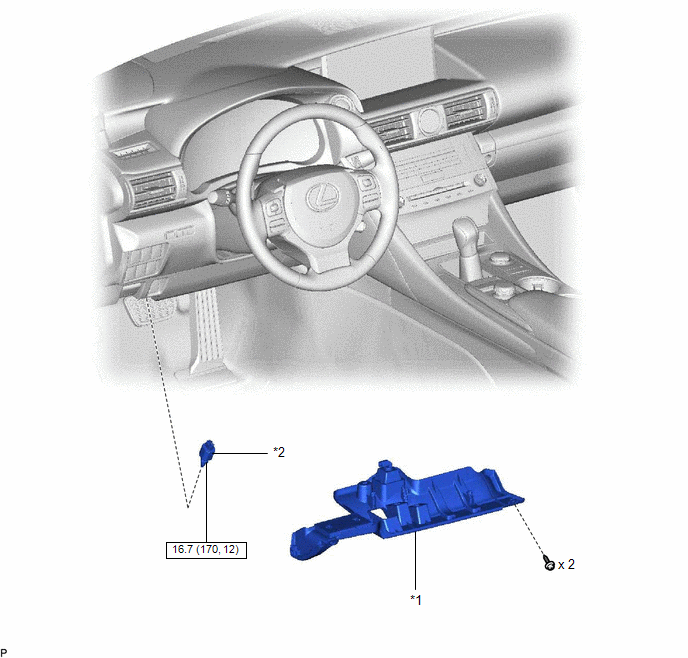

Fig 1: Stop Light Switch Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
*2
STOP LIGHT SWITCH ASSEMBLY
N.m (kgf/cm, ft.lbf): Specified torque
-
-
