Installation [09/2014 - ]: Procedure
- INSTALL STOP LIGHT SWITCH ASSEMBLY
- Temporarily install the stop light switch assembly with the stop light switch lock nut as shown in the illustration.

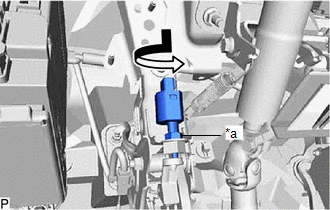

*a Stop Light Switch Lock Nut - Turn the stop light switch assembly so that the clearance between the end of the threads and cushion is within A.
*1 Stop Light Switch Assembly *a Cushion *b Stop Light Switch Lock Nut Part Measurement A 0.87 to 2.4 mm (0.0343 to 0.0945 in.) - Tighten the stop light switch lock nut.
Torque: 16.7 N.m (170 kgf/cm, 12 ft.lbf)
- Connect the connector.
- If the protrusion is not as specified, recheck switch installation and perform brake pedal adjustment if necessary.
Refer to ADJUSTMENT [09/2014 - 03/2019] , or refer to ADJUSTMENT [03/2019 - 01/2023] , or refer to ADJUSTMENT [01/2023 - ]
NOTE:Do not depress or support the brake pedal.
- Temporarily install the stop light switch assembly with the stop light switch lock nut as shown in the illustration.
- INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 36 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 36 [11/2017 - 03/2019] , or refer to PROCEDURE - Step 36 [03/2019 - 09/2020] , or refer to PROCEDURE - Step 36 [09/2020 - 01/2023] , or refer to PROCEDURE - Step 35 [01/2023 - ]
