Components [09/2014 - ]

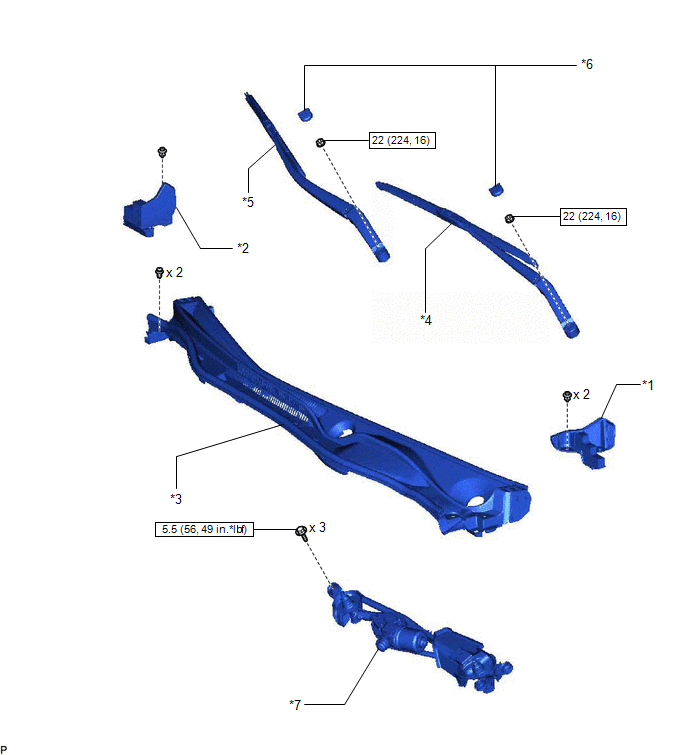

Fig 1: Front Wiper Motor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL TOP SILENCER PAD LH	*2	COWL TOP SILENCER PAD RH
*3	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*4	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*5	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*6	FRONT WIPER ARM HEAD CAP
*7	WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

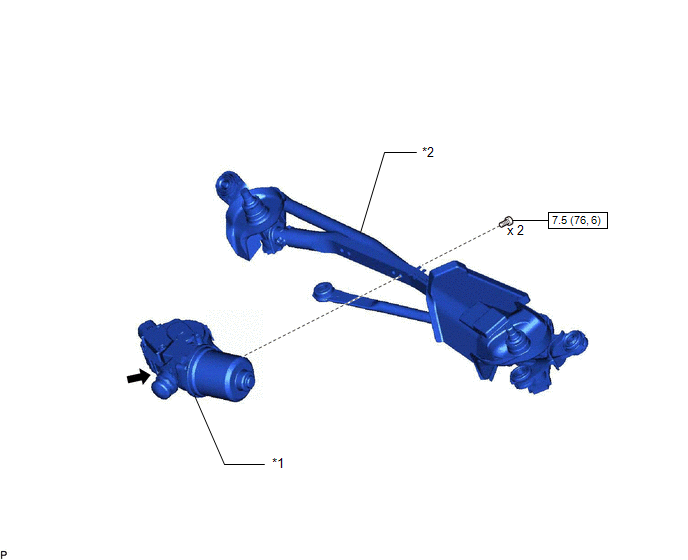

Fig 2: Front Wiper Motor Replacement Components With Torque Specifications (2 Of 2)

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WIPER LINK ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque		MP grease
