Components [03/2019 - ]

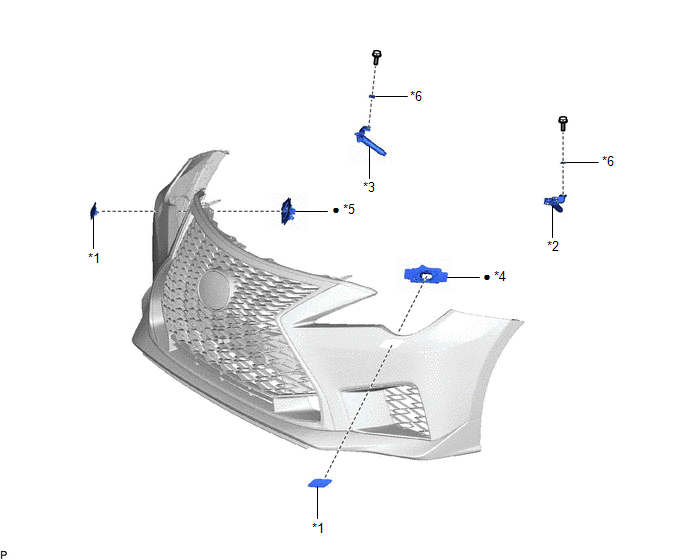

Fig 1: Headlight Cleaner Actuator Replacement Components [03/2019 - ]
GTY960627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HEADLIGHT CLEANER WASHER NOZZLE COVER *2 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH
*3 HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH *4 NO. 2 WASHER BRACKET
*5 WASHER BRACKET *6 SPRING NUT
• Non-reusable part - -
