Components [09/2014 - 03/2019]

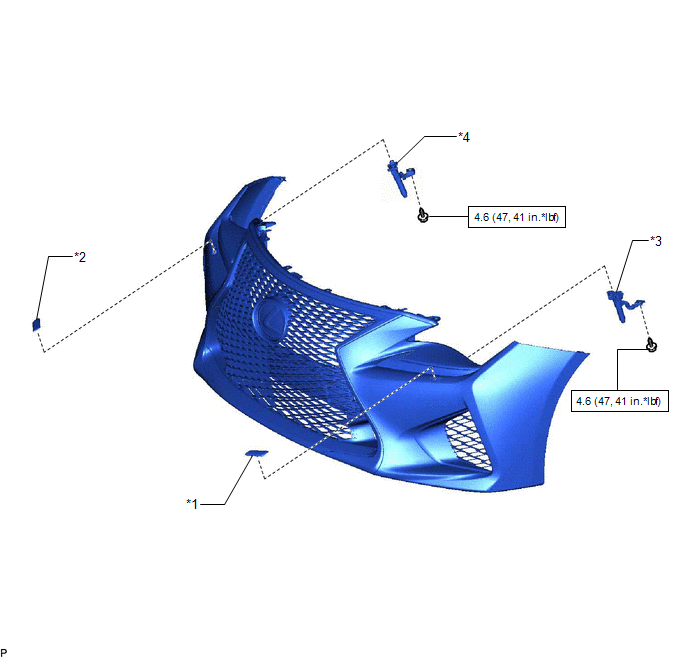

Fig 1: Headlight Cleaner Actuator Replacement Components With Torque Specifications [09/2014 - 03/2019]
| *1 | HEADLIGHT CLEANER WASHER NOZZLE COVER LH | *2 | HEADLIGHT CLEANER WASHER NOZZLE COVER RH |
| *3 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH | *4 | HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
