On-Vehicle Inspection [09/2014 - ]: Procedure
- INSPECT HEADLIGHT CLEANER CONTROL RELAY
- Disconnect the A48 Headlight cleaner control relay connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 6 (PB) - 4 (E) Battery voltage applied between terminals 3 (IG) and 2 (H) Below 1 Ω Battery voltage not applied between terminals 3 (IG) and 2 (H) 10 kΩ or higher If the result is not as specified, replace the headlight cleaner control relay.

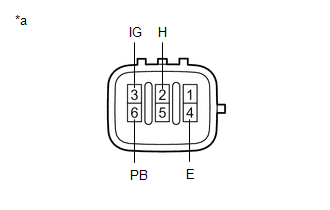

*a Component without harness connected
(Headlight Cleaner Control Relay)
