Removal [03/2019 - ]: Procedure

  1. REMOVE HEADLIGHT ASSEMBLY LH

    Refer to REMOVAL [03/2019 - ]

  2. REMOVE HEADLIGHT CLEANER CONTROL RELAY

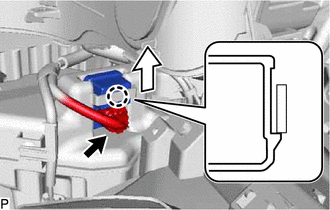

    1. Disconnect the connector.
      GTY495801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and remove the headlight cleaner control relay as shown in the illustration.
