Components [09/2014 - ]

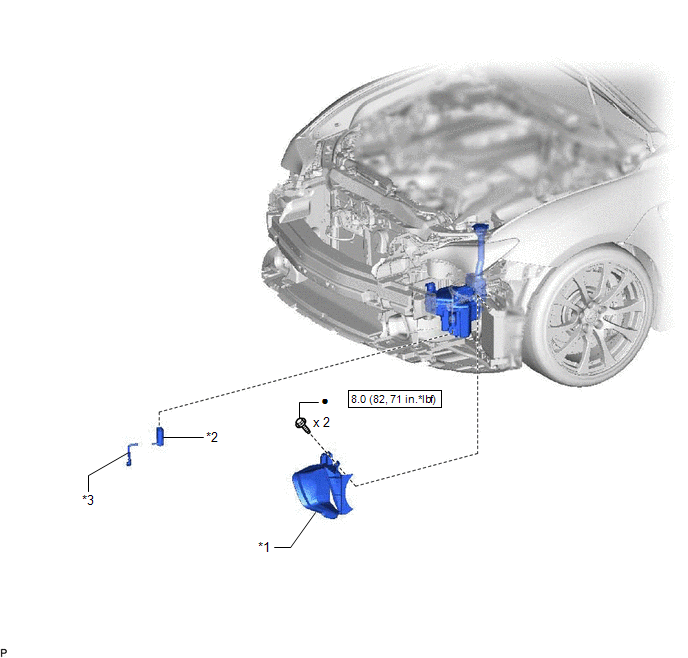

Fig 1: Headlight Cleaner Motor Replacement Components With Torque Specifications
GTY516150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 ENGINE OIL COOLER AIR INLET DUCT *2 HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY
*3 HEADLIGHT CLEANER HOSE - -
• Non-reusable part * Precoated part
N.m (kgf/cm, ft.lbf): Specified torque - -
