Installation [09/2014 - ]: Procedure

  1. INSTALL LEVEL WARNING SWITCH ASSEMBLY
    1. Install the level warning switch assembly as shown in the illustration.

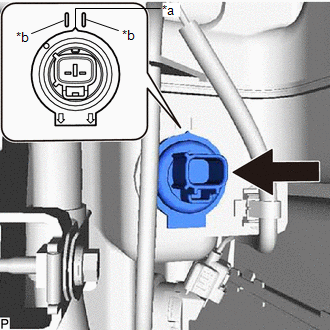

      GTY503011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Marking
      NOTE:

      Make sure that the protrusion of the level warning switch assembly is between the 2 markings.

    2. Connect the connector.

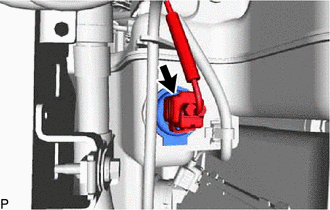

      GTY495756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the washer hose.

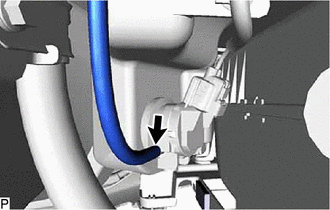

      GTY517113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ADD WINDSHIELD WASHER FLUID

    See step  2 [09/2014 - 03/2019], or see step  2 [03/2019 - ]

  3. INSTALL FRONT FENDER LINER LH

    See step  3 [09/2014 - 03/2019], or see step  3 [03/2019 - ]

  4. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    See step  4 [09/2014 - 03/2019], or see step  4 [03/2019 - ]

  5. INSTALL FRONT WHEEL LH

    Refer to INSTALLATION [09/2014 - 03/2019] , or refer to INSTALLATION [03/2019 - 01/2023] , or refer to INSTALLATION [01/2023 - ]
