Removal [09/2014 - ]: Procedure

  1. REMOVE FRONT WHEEL LH

    Refer to REMOVAL [09/2014 - 03/2019] , or refer to REMOVAL [03/2019 - 01/2023] , or refer to REMOVAL [01/2023 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    See step  2 [09/2014 - 03/2019], or see step  2 [03/2019 - ]

  3. REMOVE FRONT FENDER LINER LH

    See step  3 [09/2014 - 03/2019], or see step  3 [03/2019 - ]

  4. DRAIN WINDSHIELD WASHER FLUID

    See step  4 [09/2014 - 03/2019], or see step  4 [03/2019 - ]

  5. REMOVE LEVEL WARNING SWITCH ASSEMBLY

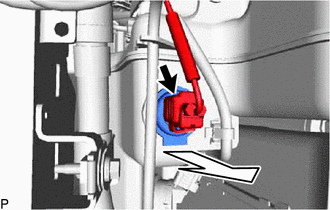

    1. Disconnect the connector.
      GTY495755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the level warning switch assembly as shown in the illustration.
