Components [03/2019 - ]

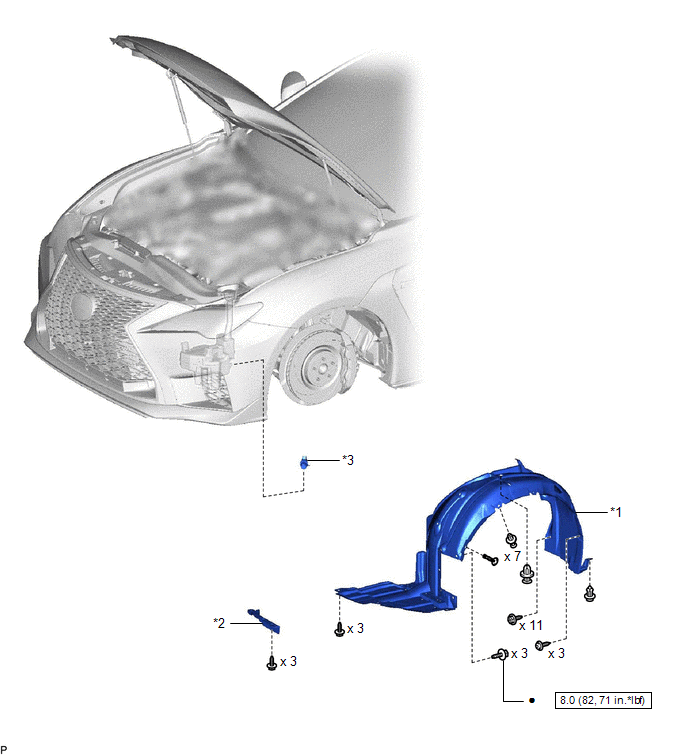

Fig 1: Washer Motor Replacement Components With Torque Specifications [03/2019 - ]
GTY960641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT FENDER LINER LH *2 FRONT WHEEL OPENING EXTENSION PAD LH
*3 WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY - -
• Non-reusable part * Precoated part
N.m (kgf/cm, ft.lbf): Specified torque - -
