Inspection [09/2014 - ]: Procedure

  1. INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

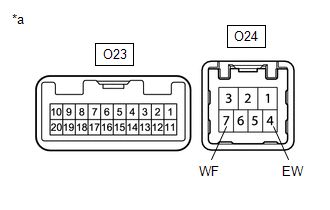

      GTY499568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Windshield Wiper Switch Assembly)

      Standard Resistance

      Tester Connection Condition Specified Condition
      O24-7 (WF) - O24-4 (EW) Front washer switch on Below 1 Ω
      Front washer switch off 10 kΩ or higher

      If the result is not as specified, replace the windshield wiper switch assembly.
