Installation [09/2014 - 03/2019]: Procedure

  1. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
    1. Engage the claw as shown in the illustration to install the windshield wiper switch assembly.

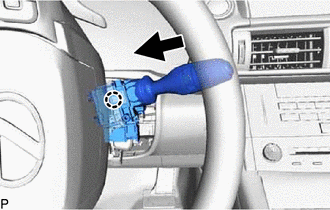

      GTY496292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 connectors.
  2. INSTALL STEERING COLUMN COVER
    1. Engage the claw to install the steering column cover (upper).
    2. Engage the 4 clips and 2 claws to connect the steering column cover (upper) to the instrument cluster finish panel assembly.
    3. Temporarily install the steering column cover (lower) as shown in the illustration.

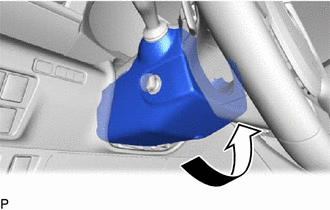

      GTY500054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Engage the 2 claws.

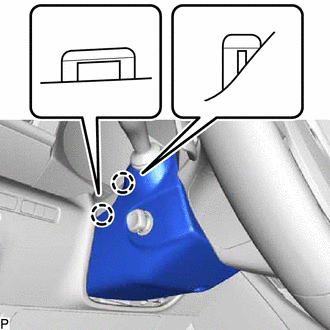

      GTY517233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 claws.

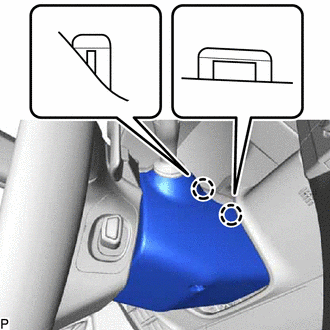

      GTY496299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the screw.
    7. Turn the steering wheel assembly to the left and install the screw.
    8. Turn the steering wheel assembly to the right and install the steering column cover (lower) with the screw.
  3. CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

    Refer to PROCEDURE - Step 15
