Removal [03/2019 - ]: Procedure

  1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)

    Refer to PROCEDURE - Step 2

  2. REMOVE STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)
    NOTE:

    Removing the steering column cover (lower) in the incorrect order will cause the parts to break.

    1. Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
    2. Lock the tilt and telescopic lever.
    3. Turn the steering wheel assembly to the left and remove the screw.
      GTY961270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Turn the steering wheel assembly to the right and remove the screw.
      GTY960518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

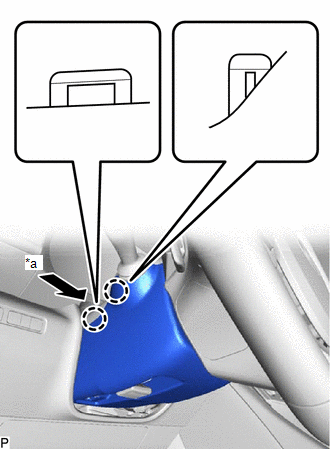

    5. Push the left side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY497847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

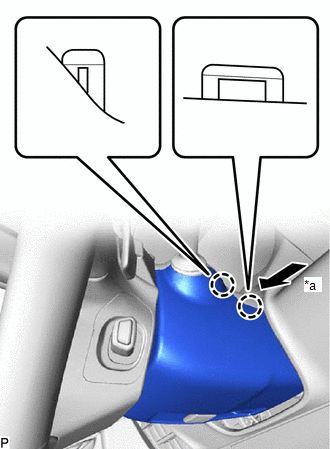

    6. Push the right side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY514847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

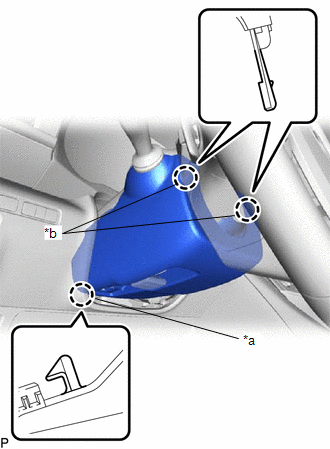

    7. Insert your fingers into the opening for the tilt lever on the steering column cover (lower) and disengage the claw (A).
      GTY496409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw (A)
      *b Claw (B)

      HINT:

      Spread the claw to disengage it.

    8. Disengage the 2 claws (B) to remove the steering column cover (lower).

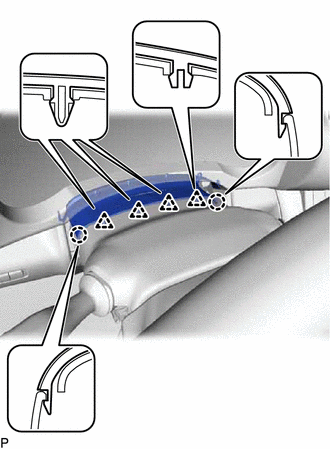

    9. Disengage the 2 claws and 4 clips to separate the steering column cover (upper) from the instrument cluster finish panel assembly.
      GTY507354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

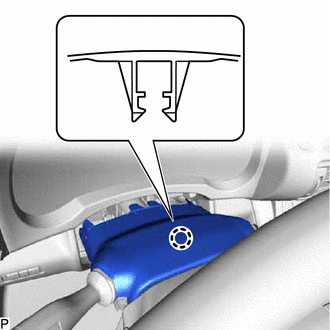

    10. Disengage the claw to remove the steering column cover (upper).
      GTY507353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)

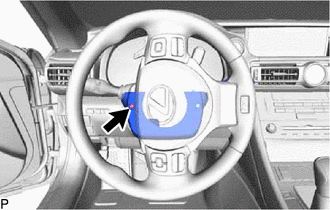

    1. Turn the steering wheel assembly to the left and remove the screw.
      GTY961270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

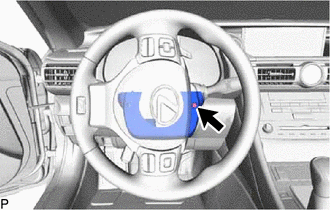

    2. Turn the steering wheel assembly to the right and remove the screw.
      GTY960518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

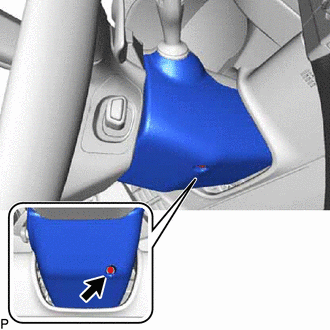

    3. Remove the screw.
      GTY496281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

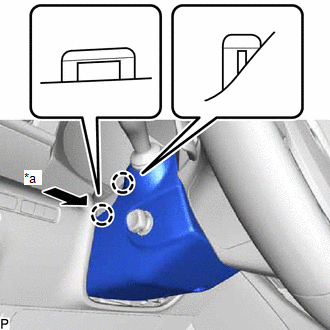

    4. Push the left side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY499166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push
    5. Push the right side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.
      GTY521029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push

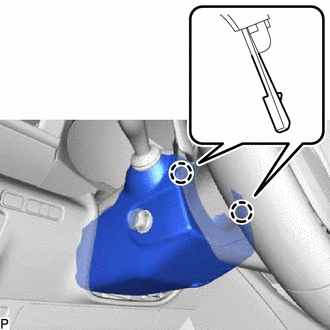

    6. Disengage the 2 claws.
      GTY496298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

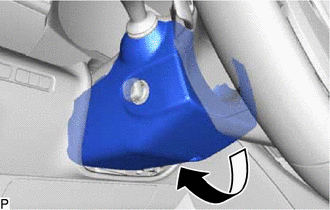

    7. Remove the steering column cover (lower) as shown in the illustration.
      GTY496297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

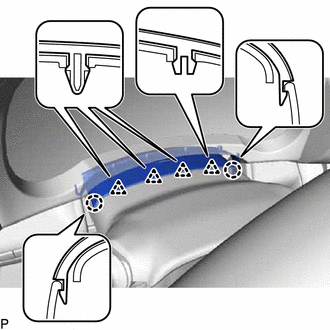

    8. Disengage the 2 claws and 4 clips to separate the steering column cover (upper) from the instrument cluster finish panel assembly.
      GTY517234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

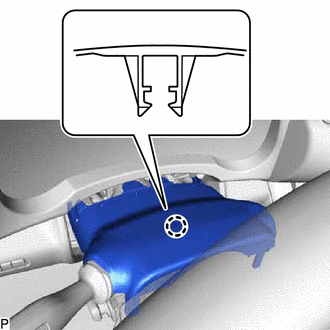

    9. Disengage the claw to remove the steering column cover (upper).
      GTY496296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY

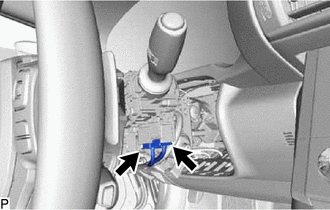

    1. Disconnect the 2 connectors.
      GTY496295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

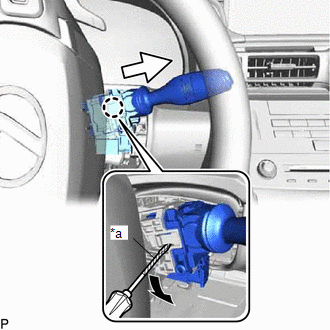

    2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
      NOTE:

      If the claw is pulled with excessive force, it may break.

      GTY960989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
