Removal [09/2014 - 03/2019]: Procedure

Refer to PROCEDURE - Step 2

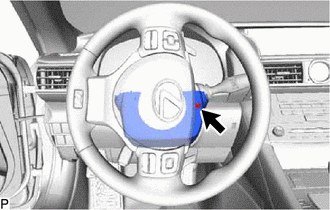

1. Turn the steering wheel assembly to the left and remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

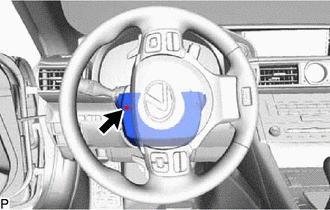

2. Turn the steering wheel assembly to the right and remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the screw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Push the left side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

5. Push the right side of the steering column cover (lower) to disengage the 2 claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Push

6. Disengage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

7. Remove the steering column cover (lower) as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

8. Disengage the 2 claws and 4 clips to separate the steering column cover (upper) from the instrument cluster finish panel assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

9. Disengage the claw to remove the steering column cover (upper).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect 2 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

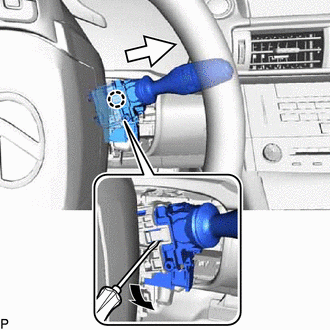

2. Using a screwdriver, disengage the claw and remove the windshield wiper switch assembly as shown in the illustration.
   NOTE:

   If the claw is pulled with excessive force, it may break.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
