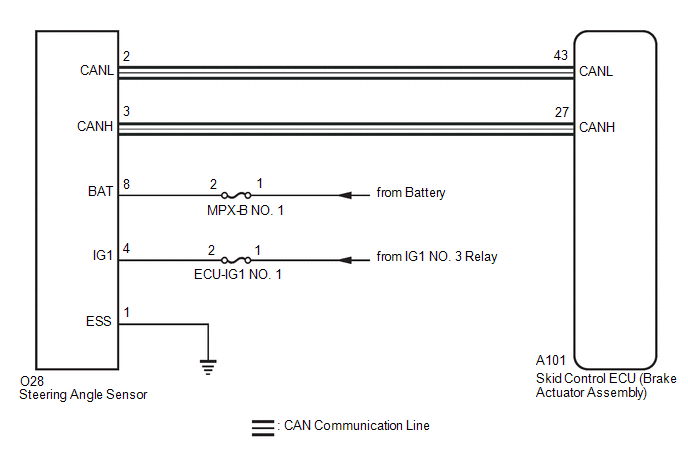

DTC C0526-2A: Steering Angle Sensor Module Signal Stuck In Range [01/2023 - ]: Wiring Diagram

GTY1172774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
