DTC C143A-7E: ABS Solenoid Control Module Actuator Stuck On; DTC C143A-7F: ABS Solenoid Control Module Actuator Stuck Off [01/2023 - ]: Procedure

1. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

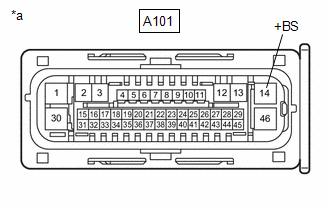

   *a	Front view of wire harness connector (to Skid Control ECU (Brake Actuator Assembly))

   OK

   The connector is securely connected.

2. Disconnect the A101 skid control ECU (brake actuator assembly) connector.
3. Check both the connector case and the terminals for deformation and corrosion.

   OK

   No deformation or corrosion.

4. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A101-14 (+BS) - Body ground	Always	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A101-1 (GND1) - Body ground	1 minute or more after disconnecting the cable from the negative (-) battery terminal	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Reconnect the A101 skid control ECU (brake actuator assembly) connector.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Operate the Techstream to clear the codes. Enter the following menus: Chassis / Brake/EPB / Trouble Codes.

   Chassis > Brake/EPB > Clear DTCs

5. Press the DTC clear button.
6. Turn the engine switch off.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  4

1. Start the engine.
2. Perform a road test.
3. Read the DTCs following the prompts on the Techstream. Enter the following menus: Chassis / Brake/EPB / Trouble Codes.

   Chassis > Brake/EPB > Trouble Codes

4. Check if the same DTC is output.

   Result

   Result	Proceed to
   DTCs C143A-7E and C143A-7F are not output.	A
   DTCs C143A-7E and/or C143A-7F are output.	B

   HINT:

   • If a speed signal of 20 km/h (12 mph) or more is input to the skid control ECU (brake actuator assembly) with the engine switch on (IG) and the stop light switch assembly off, the ECU performs self-diagnosis of the solenoid circuit.
   • If the normal system code is output (no DTCs are output), slightly jiggle the connectors, wire harnesses, and fuses of the skid control ECU (brake actuator assembly).
   • If any DTCs are output while jiggling a connector or wire harness of the skid control ECU (brake actuator assembly), inspect and repair the connector or wire harness.
   • If no DTCs were output when reconfirming DTCs, checking for intermittent problems is necessary because it is suspected that the original DTCs were stored due to the poor connection of a connector terminal.

Result:

A

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [01/2023 - ]

Result:

B

REPLACE BRAKE ACTUATOR ASSEMBLY. Refer to  REMOVAL [01/2023 - ]
