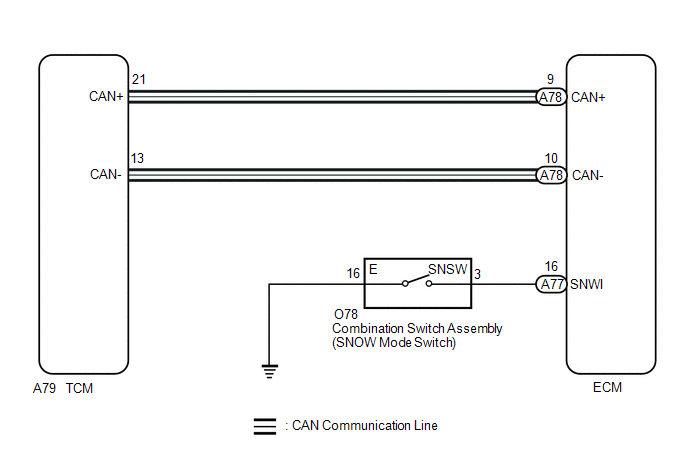

Pattern Select Switch Snow Mode Circuit [09/2014 - 03/2019]: Wiring Diagram

GTY508370

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
