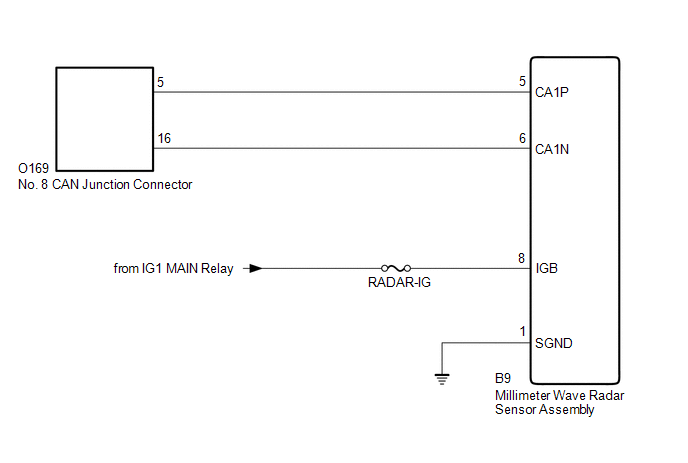

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor [11/2017 - 01/2023]: Wiring Diagram

GTY779740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
