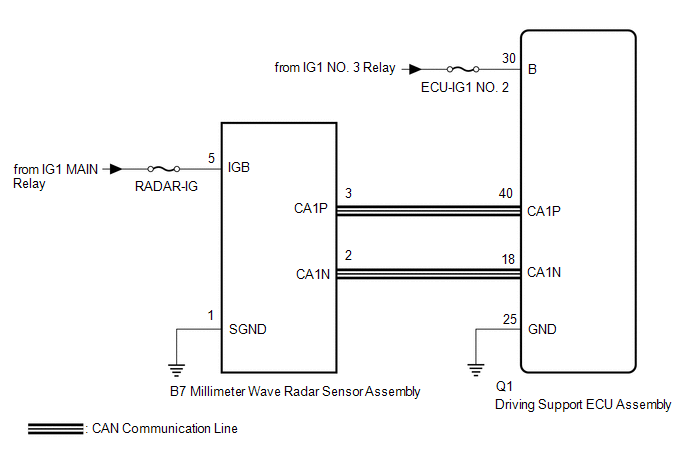

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [09/2014 - 11/2017]: Wiring Diagram

GTY498084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
