DTC U0235-87: Lost Communication with Cruise Control Front Distance Range Sensor Missing Message [01/2023 - ]: Procedure
- CHECK FOR DTCs
- Read each DTC and check the diagnosis pattern using the table below.
Body Electrical > Pre-Collision System > Trouble Codes
Chassis > Lane Control > Trouble Codes
Body Electrical > Front Recognition Camera (Front Lighting Control) > Trouble Codes
Powertrain > Radar Cruise2 > Trouble Codes
Body Electrical > Front Radar Sensor > Trouble Codes
Pattern DTC output part name
(Display on Techstream)Pre-Collision System Lane Control Forward Recognition Camera (Front Lighting Control) Radar Cruise2 Front Radar Sensor Pattern 1 U0235-87 U0235-87 U0235-87 U0235-87 U0104-87 Pattern 2 U0235-87 U0235-87 U0235-87 U0235-87 - Result
Result Proceed to Pattern 1 A Pattern 2 B
Result:
B
See step 4
Result:
A
See step 2
- Read each DTC and check the diagnosis pattern using the table below.
- CHECK CAN MAIN WIRE (FORWARD RECOGNITION CAMERA)

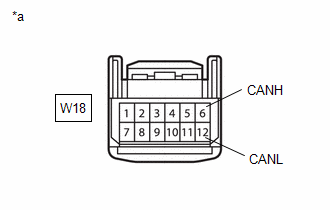

*a Front view of wire harness connector
(to Forward Recognition Camera)- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the forward recognition camera connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition W18-6 (CANH) - W18-12 (CANL) Cable disconnected from negative (-) battery terminal 108 to 132 Ω W18-6 (CANH) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher W18-12 (CANL) - Body ground W18-6 (CANH) - +B Cable disconnected from negative (-) battery terminal 6 kΩ or higher W18-12 (CANL) - +B Result
Proceed to OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA. Refer to REMOVAL [01/2023 - ]
Result:
NG
See step 3
- CHECK CAN MAIN WIRE (MILLIMETER WAVE RADAR SENSOR ASSEMBLY)

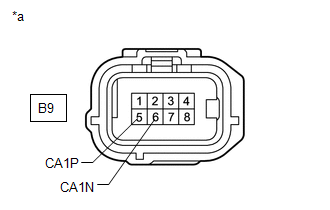

*a Front view of wire harness connector
(to Millimeter Wave Radar Sensor Assembly)- Disconnect the cable from the negative (-) battery terminal.
- Connect the forward recognition camera connector.
- Disconnect the millimeter wave radar sensor assembly connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition B9-5 (CA1P) - B9-6 (CA1N) Cable disconnected from negative (-) battery terminal 108 to 132 Ω B9-5 (CA1P) - Body ground Cable disconnected from negative (-) battery terminal 200 Ω or higher B9-6 (CA1N) - Body ground B9-5 (CA1P) - +B Cable disconnected from negative (-) battery terminal 6 kΩ or higher B9-6 (CA1N) - +B Result
Proceed to OK NG
Result:
OK
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to REMOVAL [01/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- CHECK MILLIMETER WAVE RADAR SENSOR ASSEMBLY

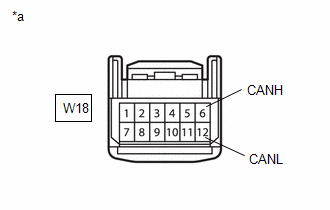

*a Front view of wire harness connector
(to Forward Recognition Camera)- Disconnect the forward recognition camera connector.
- Using an oscilloscope, check the waveform.
OK
Tester Connection Condition Tool Setting Specified Condition W18-6 (CANH) - W18-12 (CANL) Engine switch on (IG) 1V/DIV., 100μs./DIV. Pulse generation Result
Proceed to OK NG
Result:
OK
REPLACE FORWARD RECOGNITION CAMERA. Refer to REMOVAL [01/2023 - ]
Result:
NG
REPLACE MILLIMETER WAVE RADAR SENSOR ASSEMBLY. Refer to REMOVAL [01/2023 - ]
