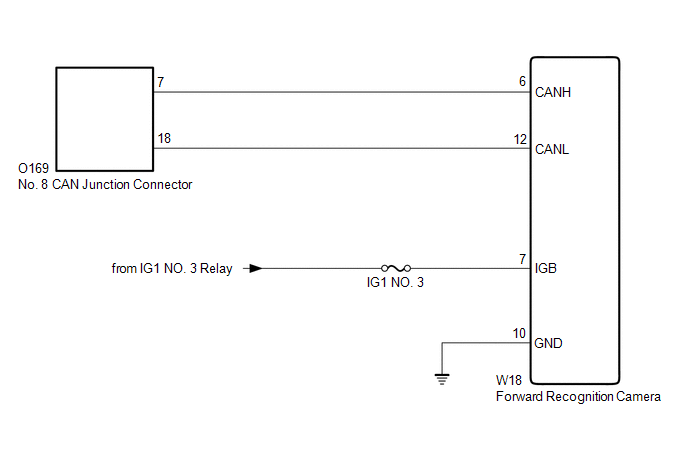

DTC U023A: Lost Communication with Front Camera Module [11/2017 - 01/2023]: Wiring Diagram

GTY779741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
