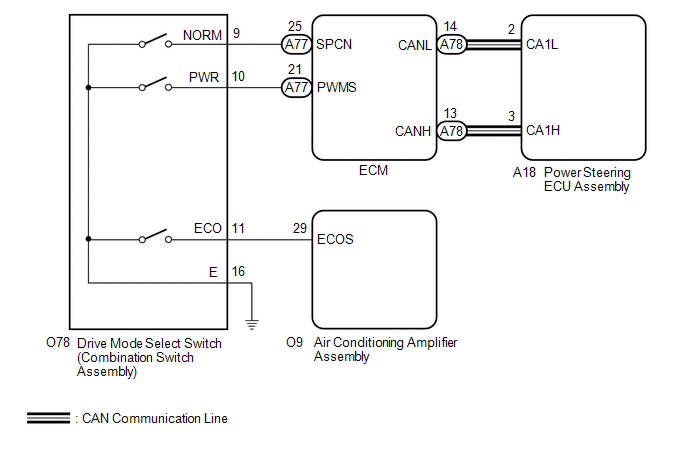

Drive Mode Select Switch Circuit [09/2014 - ]: Wiring Diagram

GTY501567

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
