TC and CG Terminal Circuit [09/2014 - 03/2019]: Procedure

1. Check for DTCs.

   Refer to DIAGNOSIS SYSTEM [09/2014 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 11/2017] , or refer to DIAGNOSIS SYSTEM [11/2017 - 03/2019]

   Result

   Result	Proceed to
   CAN communication system DTCs are not output.	A
   CAN communication system DTCs are output.	B

Result:

B

GO TO CAN COMMUNICATION. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 11/2017]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2017 - 03/2019]

Result:

A

See step  2

1. Turn the engine switch on (IG).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

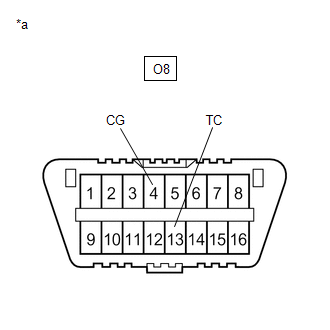

   *a	Front view of DLC3

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O8-13 (TC) - O8-4 (CG)	Engine switch on (IG)	9 to 16 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  3

1. Turn the engine switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of DLC3

2. Replace the ECM.

   Refer to REMOVAL [09/2014 - ]

3. Using SST, connect terminals TC and CG of the DLC3.
   • SST: 09843-18040
   NOTE:

   Connect the terminals properly to avoid a malfunction.

4. Check that the EPS warning light is blinking.

   OK

   The EPS warning light is blinking.

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part.

   Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 03/2019]

   Result

   Proceed to
   OK
   NG

Result:

OK

END

Result:

NG

REPLACE POWER STEERING ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

1. Disconnect the A77 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O8-13 (TC) - A77-19 (TC)	Always	Below 1 Ω
   O8-13 (TC) or A77-19 (TC) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

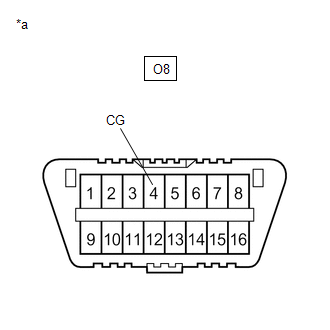

   *a	Front view of DLC3

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O8-4 (CG) - Body ground	Always	Below 1 Ω

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part.

   Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 03/2019]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR OR EACH ECU

Result:

OK

See step  6

1. Replace the ECM.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of DLC3

   Refer to REMOVAL [09/2014 - ]

2. Using SST, connect terminals TC and CG of the DLC3.
   • SST: 09843-18040
   NOTE:

   Connect the terminals properly to avoid a malfunction.

3. Check that the EPS warning light is blinking.

   OK

   The EPS warning light is blinking.

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part.

   Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 03/2019]

   Result

   Proceed to
   OK
   NG

Result:

OK

END

Result:

NG

REPLACE POWER STEERING ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - ]
