TS and CG Terminal Circuit [09/2014 - 03/2019]: Procedure

1. Turn the engine switch on (IG).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

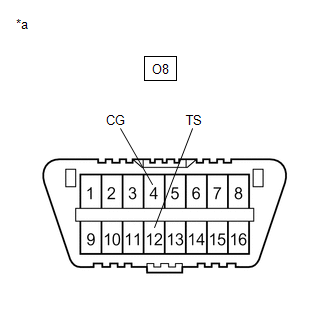

   *a	Front view of DLC3

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   O8-12 (TS) - O8-4 (CG)	Engine switch on (IG)	9 to 16 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POWER STEERING ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

Result:

NG

See step  2

1. Disconnect the A18 power steering ECU assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O8-12 (TS) - A18-5 (TS)	Always	Below 1 Ω
   O8-12 (TS) or A18-5 (TS) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   O8-4 (CG) - Body ground	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Front view of DLC3

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part.

   Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 03/2019]

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE POWER STEERING ECU ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
