Automatic Transmission System - Diagnostic Codes (2 Of 3)
>>
Automatic Transmission System
>>
DTC P07C1: Input/Turbine Speed Sensor "B" Circuit Low; DTC P07C2: Input/Turbine Speed Sensor "B" Circuit High; DTC P2767: Input / Turbine Speed Sensor "B" Circuit No Signal [11/2017 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

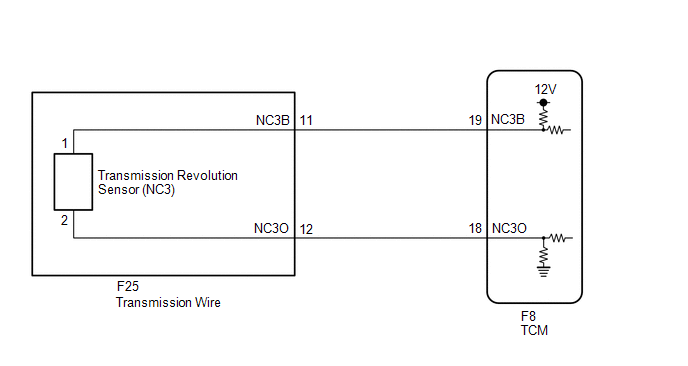

DTC P07C1: Input/Turbine Speed Sensor "B" Circuit Low; DTC P07C2: Input/Turbine Speed Sensor "B" Circuit High; DTC P2767: Input / Turbine Speed Sensor "B" Circuit No Signal [11/2017 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
