Lin Communication System - Diagnostic Codes
>>
Lin Communication System
>>
DTC B1206: P/W Master Switch Communication Stop [09/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

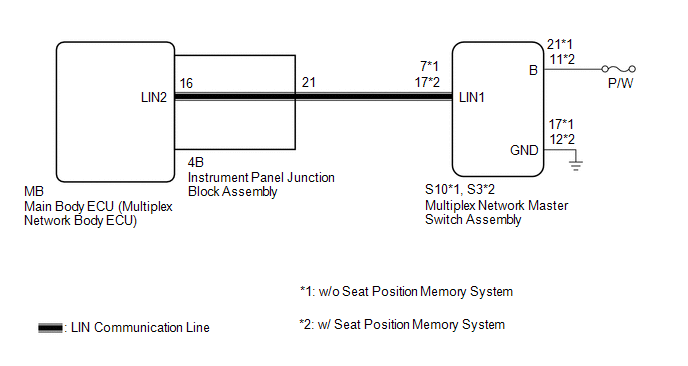

DTC B1206: P/W Master Switch Communication Stop [09/2014 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
