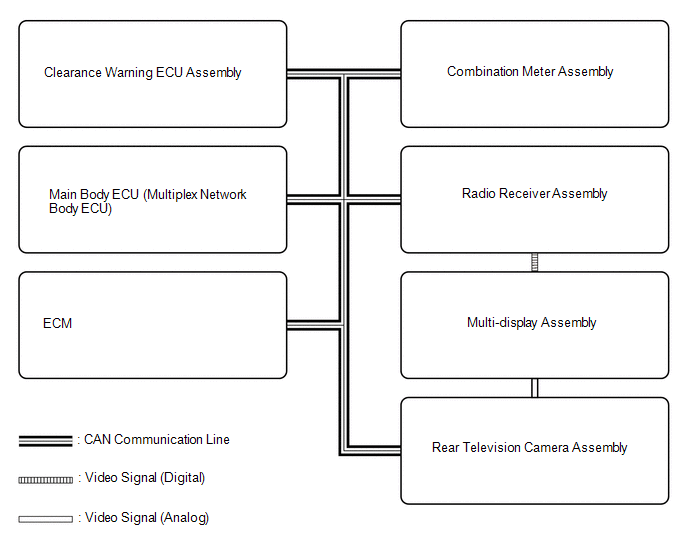

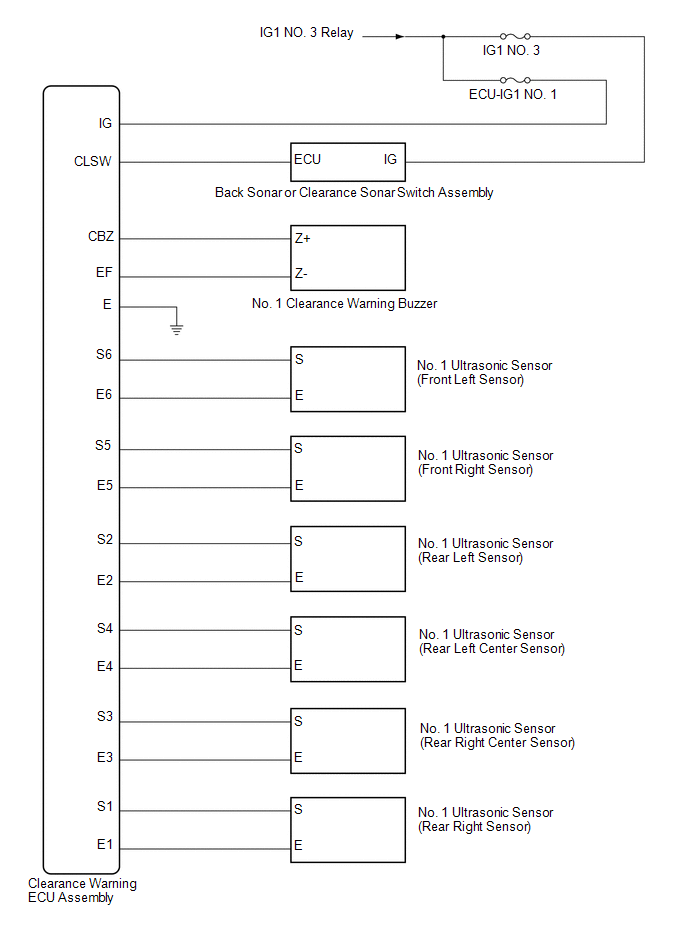

System Diagram [03/2019 - ]
COMMUNICATION TABLE
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Main Body ECU (Multiplex Network Body ECU) |
Clearance Warning ECU Assembly | Destination information signal | CAN Communication Line |
| ECM | Clearance Warning ECU Assembly | Shift position signal | CAN Communication Line |
| Combination Meter Assembly | Clearance Warning ECU Assembly | Vehicle speed signal | CAN Communication Line |
| Clearance Warning ECU Assembly | Combination Meter Assembly |
|
CAN Communication Line |
| Clearance Warning ECU Assembly | Radio Receiver Assembly | Sonar information signal | CAN Communication Line |
| Clearance Warning ECU Assembly | Rear Television Camera Assembly | Sonar information signal | CAN Communication Line |
| Radio Receiver Assembly | Multi-display Assembly | Video signal | Digital |
| Rear Television Camera Assembly | Multi-display Assembly | Video signal | Analog |
