Components [09/2014 - 03/2019]

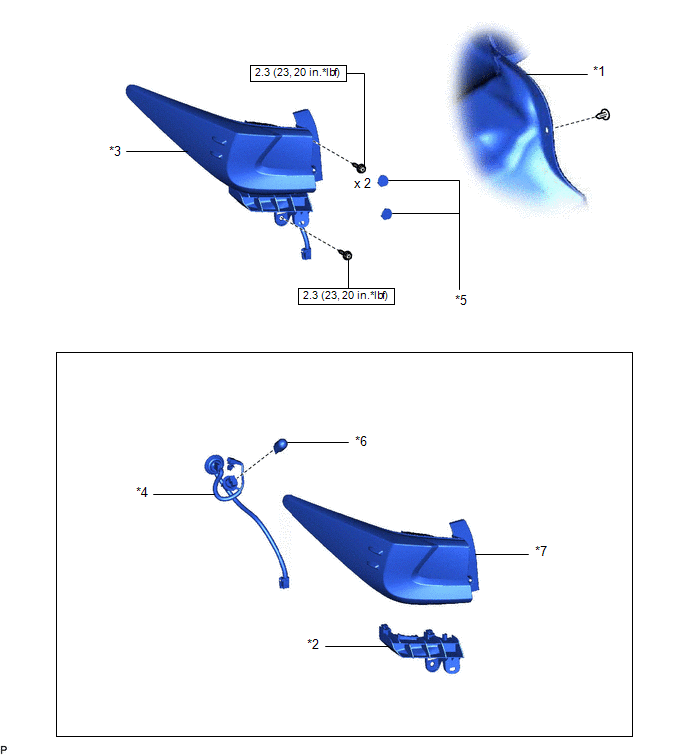

Fig 1: Rear Combination Light Assembly Replacement Components With Torque Specifications [09/2014 - 03/2019]
| *1 | LUGGAGE COMPARTMENT TRIM COVER | *2 | REAR BUMPER UPPER RETAINER |
| *3 | REAR COMBINATION LIGHT ASSEMBLY | *4 | REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY |
| *5 | REAR LIGHT COVER | *6 | REAR TURN SIGNAL LIGHT BULB |
| *7 | REAR COMBINATION LIGHT LENS AND BODY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
